GDG offer a fully bespoke design and manufacture service for customers who require instrumentation that is not readily available within the industry. In addition GDG manufacture an extensive range of pressure gauges from low to High Pressure (6000bar), in the following sectors Petrochemical, Offshore, Pharmaceutical, Food and Beverage and Hygienic markets.

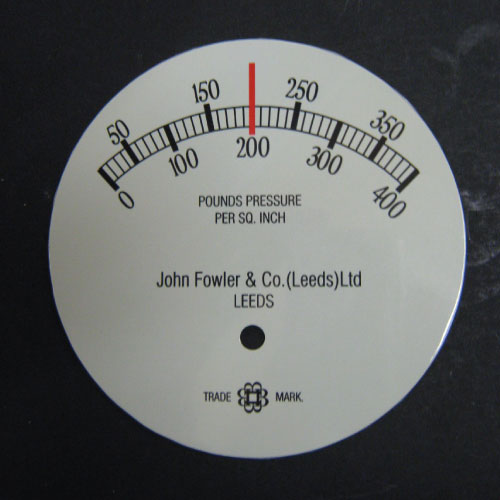

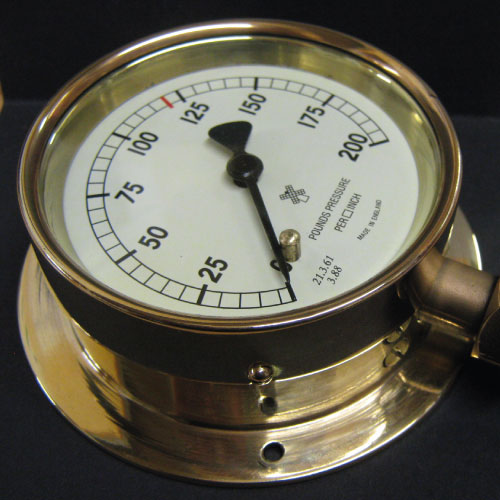

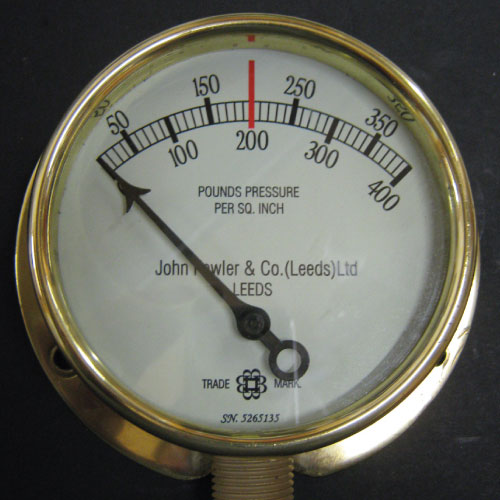

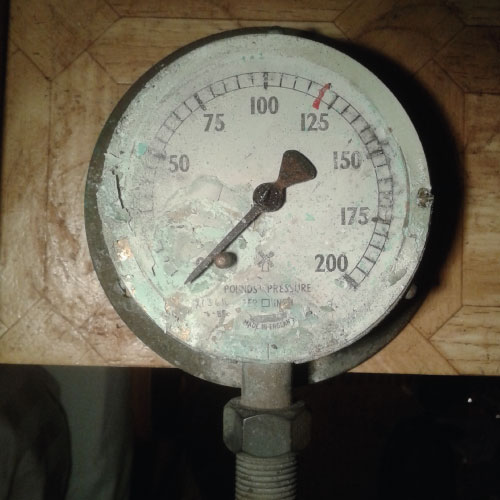

Repair & Calibration Services

GDG offer a full repair and UKAS traceable calibration service on a vast range of mechanical instrumentation. Our temperature regulated workshop and custom built calibration laboratory is fully equipped with state-of-the-art test instrumentation, and our experienced engineers are ready to help satisfy your requirements.

Click for larger image

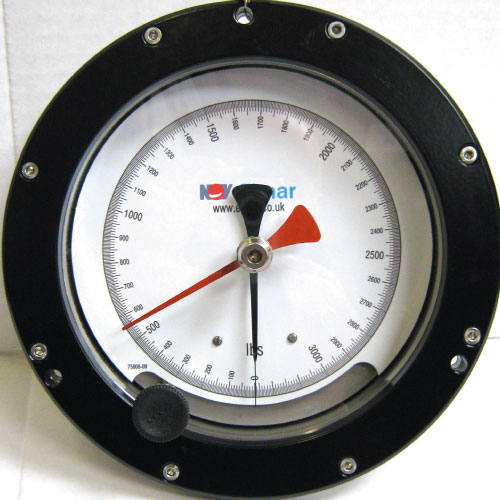

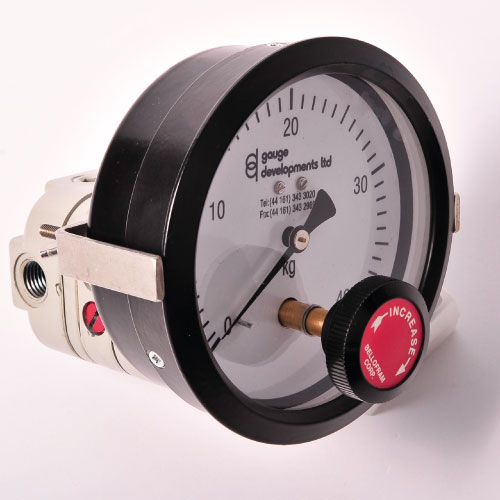

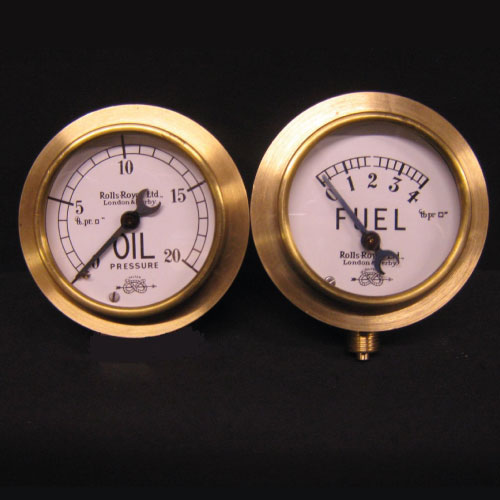

Bespoke Design & Manufacturing

GDG offer a fully bespoke design and manufacture service to customers requiring tailor-made solutions. We will value engineer bespoke profile designs and existing profiles to meet your specialist requirements; working hard to keep every project on schedule and within budget.

Click for larger image

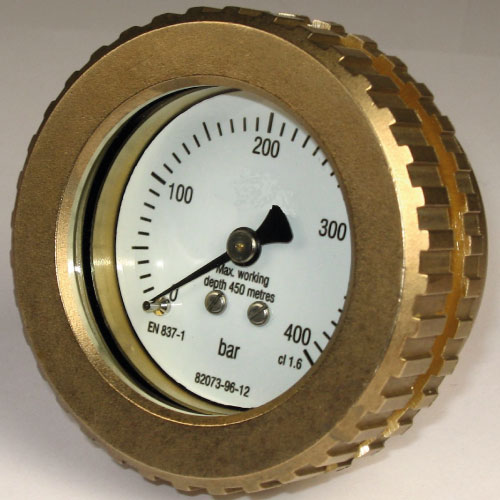

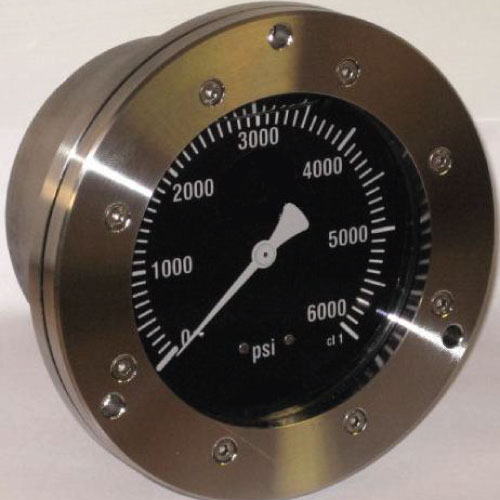

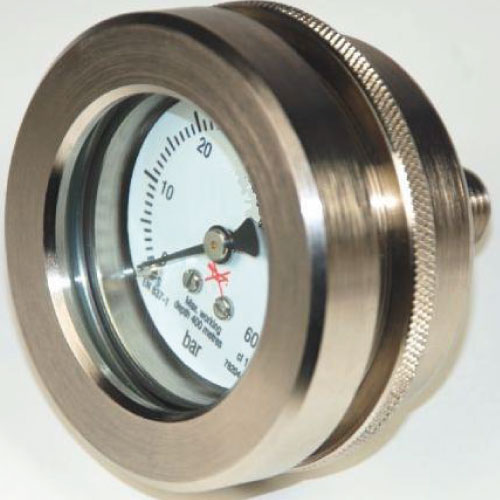

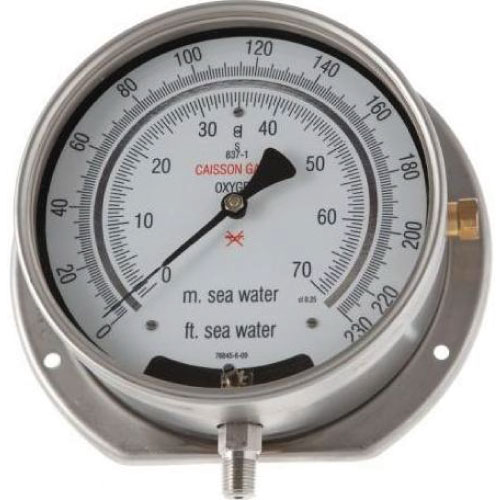

Sub-Sea, Diving & Marine

Our Sub-Sea, Diving and Marine instrumentation has been designed and manufactured in house for many years and based on our knowledge of this sector we can guarantee our Sub-Sea, Caisson, Depth and Pneumo pressure gauges are manufactured to the highest quality to meet your needs.

Click for larger image

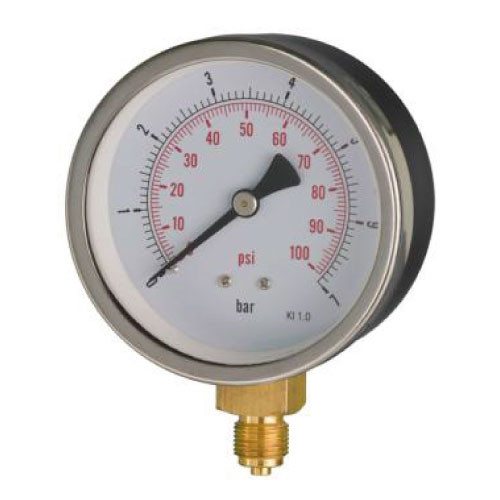

Standard Gauges

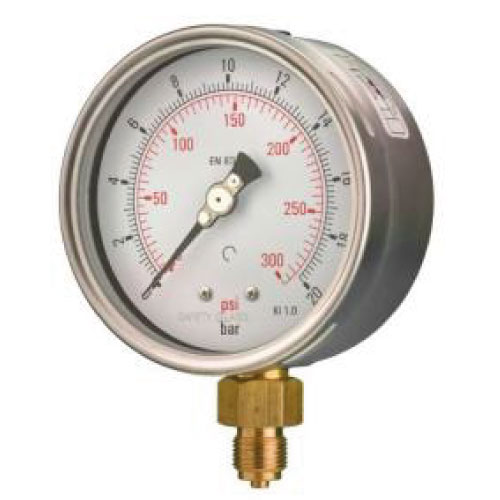

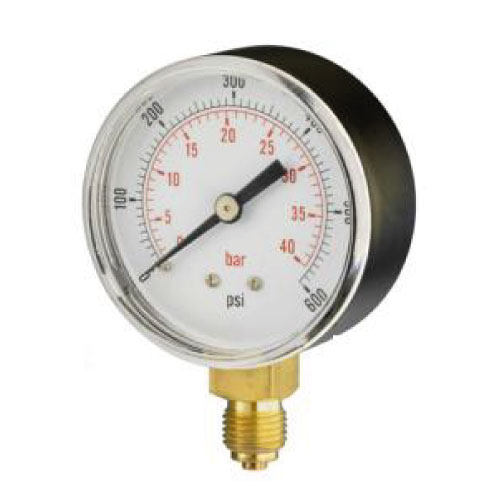

Type 10

Data Sheet 210

This is the basic pressure / General purpose pressure gauge, available in 40, 50, 63, 80, 100, 160 and 250mm dial sizes. Mounting options are direct, surface or flush pannel mounting with ranges from vacuum to 15000psi/bar. All are manufactured in accordance with BS EN 837-1. Optional extra's available.

Please contact our sales team to discuss specific requirements or for a copy of our applicable Data Sheet 210.

Click for larger image

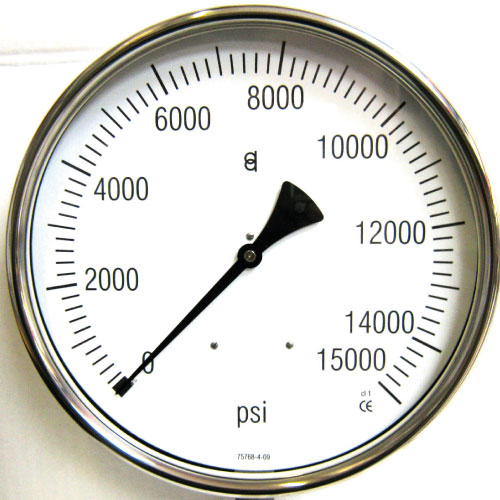

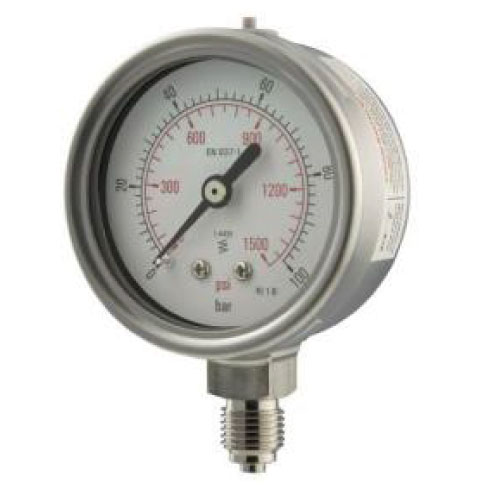

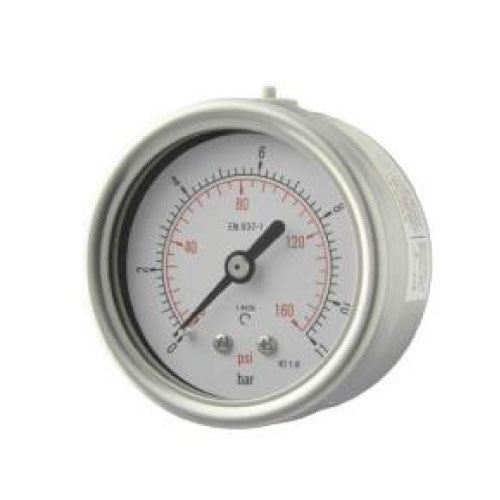

Stainless Steel Gauges

Type 11

Data Sheet 211

Manufactured from 304st.st.case with 316st.st wetted parts this model is ideal for use in harsher and more corrosive enviroments. Available in 40, 50, 63, 80, 100, 160 and 250mm dial sizes. Mounting options are direct, surface or flush pannel mounting with ranges from vacuum to 2500bar. All are manufactured in accordance with BS EN 837-1. Optional extra's available.

Please contact our sales team to discuss specific requirements or for a copy of our applicable Data Sheet 211.

Click for larger image

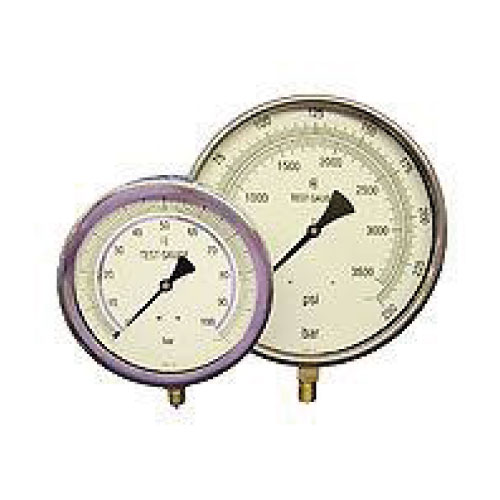

Test Gauges

Type 12

Data Sheet 212

Test Gauges are used primarily as the standard to the test other pressure equipment against and being manufactured using specially specially selected materials and components and following strict heat treatment criteria enables an accuracy of greater than +/-0.25% to be achieved. Available in 100, 160, 200 and 250mm dial sizes, with direct,surface or flush panel mounting options. All are manufactured in accordance with BS EN 837-1. Optional extra's available.

Please contact our sales team to discuss specific requirements or for a copy of our applicable Data Sheet 212.

Click for larger image

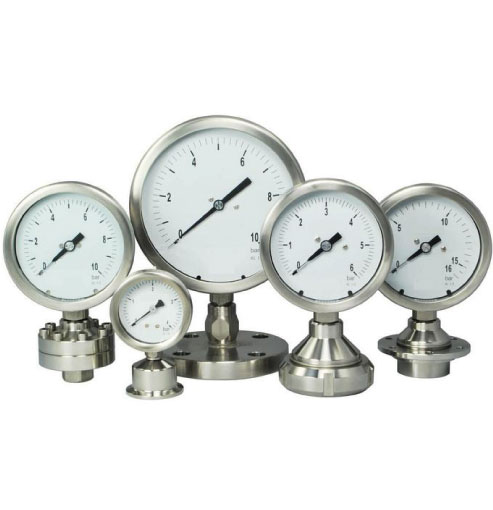

Diaphragm Seals

Type 13

Data Sheet 213

Where necessary the pressure gauge may be separated from aggressive process media by means of a diaphragm seal. The seal is made from materials resistant to the medium and the pressure is transferred to the gauge via a suitable filling liquid. There are many types of seals available for numerous applications and can be fitted direct or remotely via capillary. Available in 63, 80, 100, 160, 200 and 250mm dial sizes, with direct, surface or flush panel mounting options. All are manufactured in accordance with BS EN 837-1. Optional extra's available.

Please contact our sales team to discuss specific requirements or for a copy of our applicable Data Sheet 213.

Click for larger image

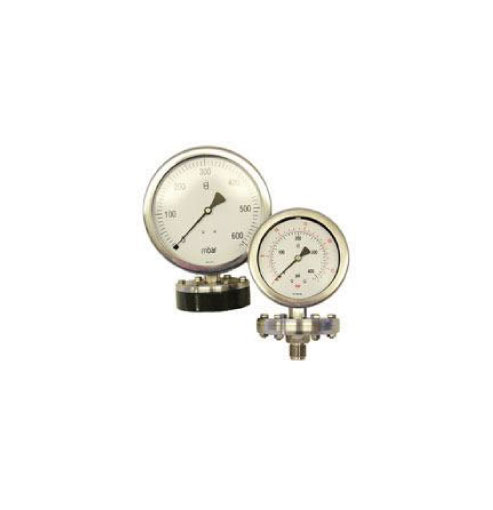

Schaffer Gauges

Type 14

Data Sheet 214

As with diaphragm seal pressure gauges where necessary the pressure gauge may be separated from aggressive media by means of a diaphragm and movement making this gauge especially suitable for low pressure measurement and operation of electric contacts. Available in 100, 160, 200 and 250mm dial sizes, with direct, surface or surface mounting options. All are manufactured in accordance with BS EN 837-1. Optional extra's available.

Please contact our sales team to discuss specific requirements or for a copy of our applicable Data Sheet 214.

Click for larger image

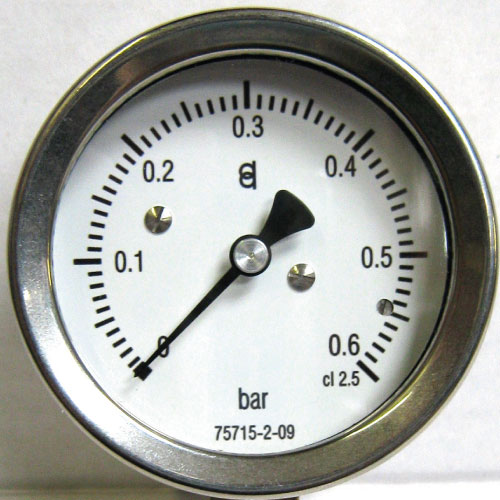

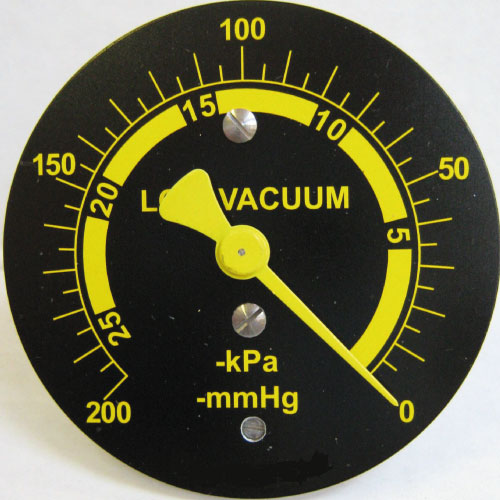

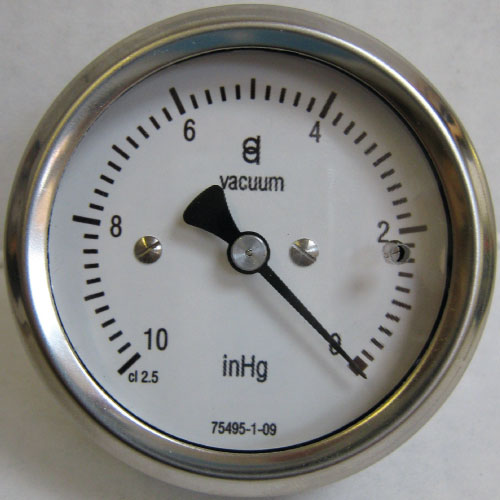

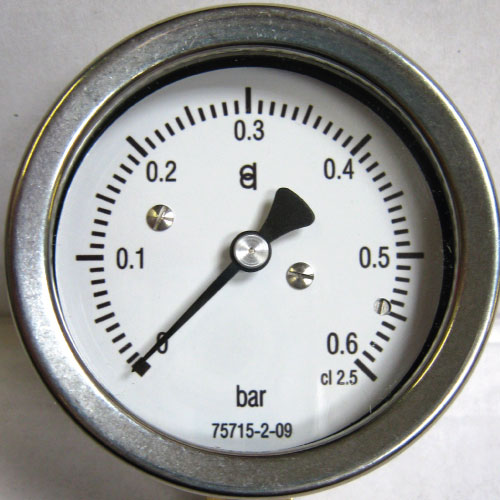

Low Pressure Gauges

Type 15

Data Sheet 215

Capsule gauges are used for low pressure measurement, below 0.6bar (10psi), can be made using st.st or berrylium copper, the latter not being suitable for corrosive gases/enviroments. Available in 63, 100 and 160 dial sizes, with direct, surface or flush panel mounting options. All are manufactured in accordance with BS EN 837-1. Optional extra's available.

Please contact our sales team to discuss specific requirements or for a copy of our applicable Data Sheet 215.

Click for larger image

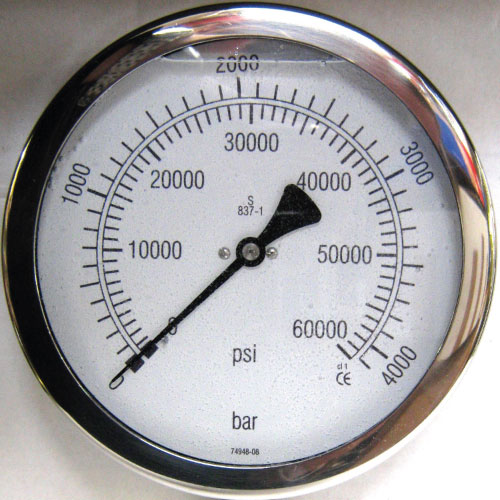

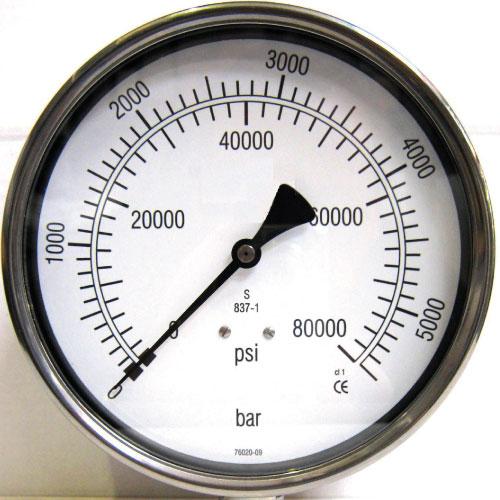

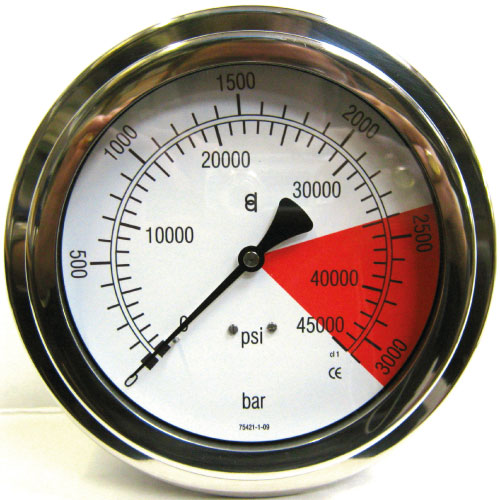

High Pressure

Type 16

Data Sheet 216

GDG manufacture high pressure gauges to such markets as bolt tensioning, water jet cutting and cleaning, gas and oil, chemical and petrochemical, research and development, universities and general industry.

Click for larger image

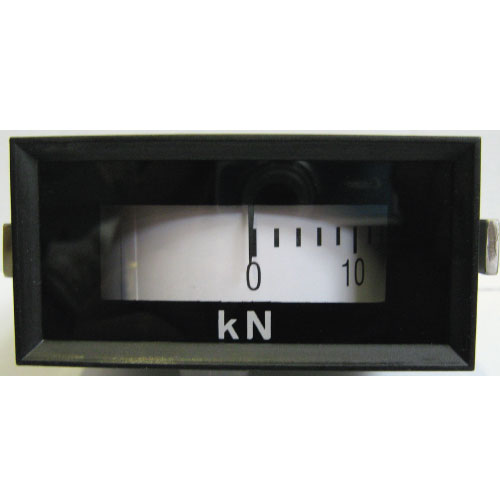

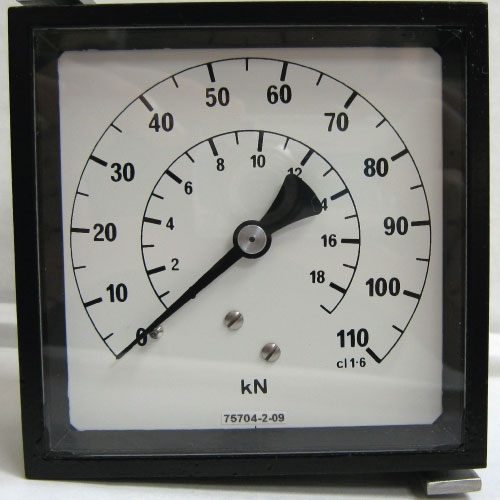

Square Pressure Gauges

Type 17

Data Sheet 217

The GDG square case pressure gauge is designed to occupy less space when compared with a round pressure gauge and is more appropriate for arranging many gauges on the same panel. Generally this design of gauge is panel mounted and fitted in place with two rear clamps. All are manufactured in accordance with BS EN 837-1. Optional extra's available.

Please contact our sales team to discuss specific requirements or for a copy of our applicable Data Sheet 217.

Click for larger image

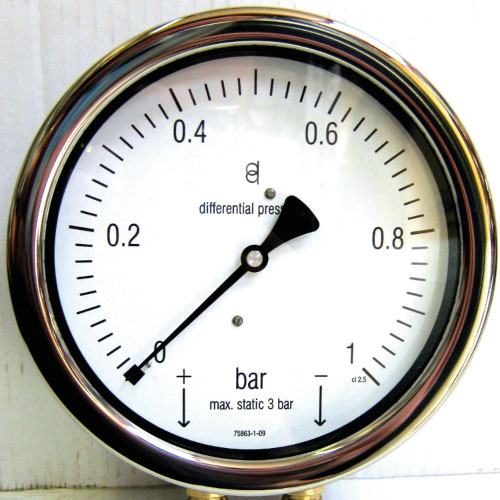

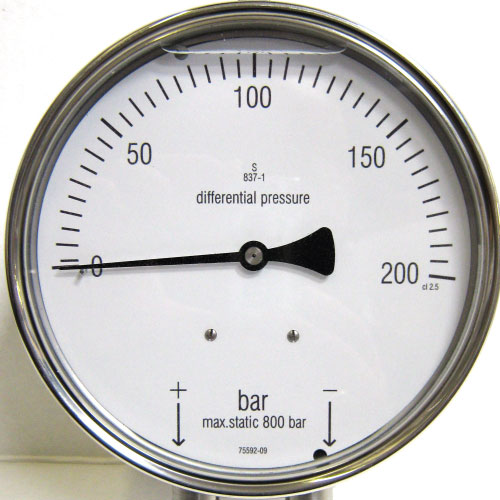

Differential Pressure

Type 19

Data Sheet 219

GDG opposing bourdon tube type differential pressure gauges are designed to measure the difference in pressure between two points in a system and present the resultant differential pressure directly on a single gauge dial. GDG differential pressure gauges, as standard, are manufactured with a maximum static/line pressure of 3x the differential pressure, this can be greater if required but will equate to a shorter scale angle than the usual 270' scale.

Click for larger image

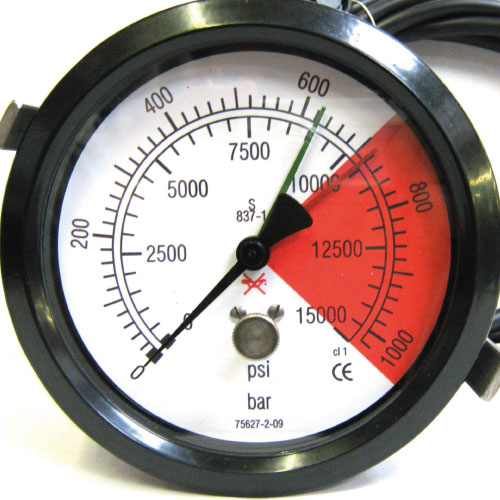

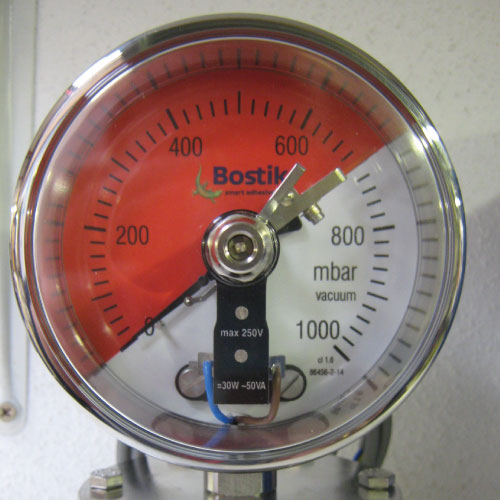

Electric Contact / Microswitch Pressure

Type 21

Data Sheet 221

GDG electric contact. Microswitch pressure gauges are suitable where the application is for control of pressure & for auidible or visible alarms. These gauges give electrical output which can be used to turn a motor on/off & similar applications. Configurations can be from single to double contacts with m.o.r./.b.o.r output settings. All are manufactured in accordance with BS EN 837-1. Optional extra's available.

Please contact our sales team to discuss specific requirements or for a copy of our applicable Data Sheet 221.

Click for larger image

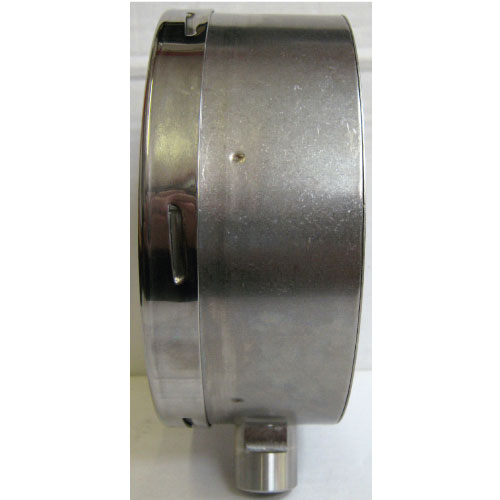

Safety Pattern Pressure Gauge

Type 25

Data Sheet 225

GDG safety pattern gauges are designed to be used with any media but primarily have been designed for gas and steam service. Gas and steam in excess of 25bar pressure can represent danger if there is a rupture in the bourdon tube measuring this gas. To minimize the danger, gauges in this application should be saftey pattern type, having solid front wall between the bourdon tube and dial, secured safety window and blow out back to allow release of any blast to the rear of the gauge. Optional extra's available.

Please contact our sales team to discuss specific requirements or for a copy of our applicable Data Sheet 225.

Click for larger image

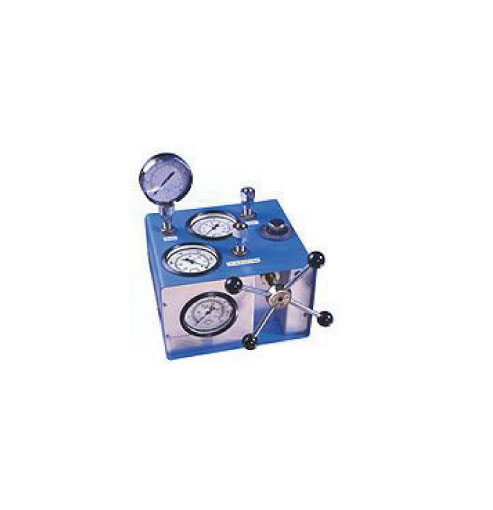

Comparators & Test Kits

Type 35

Data Sheet 235

GDG range of comparator's are available as standard hand operated unit's wwith working pressure rages available from 0-400bar (6000psi) up to 7000bar units. The high pressure units are available fitted with digital display and transducer with accuracy to 0.25%. These units can be supplied with fully traceable certification and a wide range of adaptors upon request.

Please contact our sales team to discuss specific requirements or for a copy of our applicable Data Sheet 225.

Click for larger image

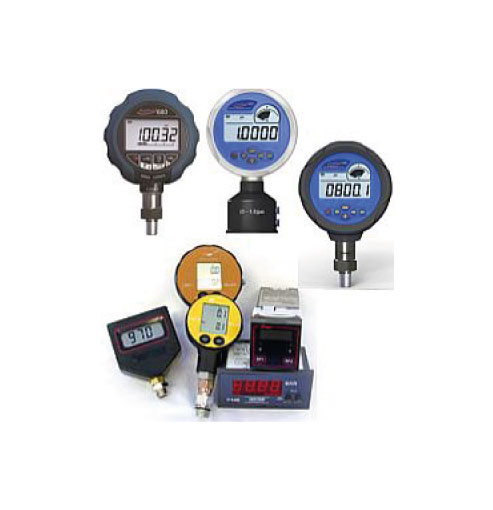

Digital Pressure Gauges

GDG offer a wide variety of digital pressure gauges which provide an accurate, reliable, and economic solution for a wide range of pressure applications. With data logging and wireless features available, pressure measurement data can be stored in the internal memory or display them on PC through wireless communication. With ranges from vacuum to 2000bar and Accuracy 0.05% FS available you will be sure we can supply what you need.

Click for larger image
